FEELWORLD LUT7 7 Inch 3D LUT 2200nits Touch Screen DSLR Camera Field Monitor with Waveform VectorScope Histogram for Shooting

Sale price€1,332.99 Regular price€2,344.90
Save €1,011.91
default:default
Quantity:
American Express Apple Pay Diners Club Giropay Google Pay JCB Maestro Mastercard PayPal PaySafeCard Shop Pay SOFORT Union Pay Visa
Description

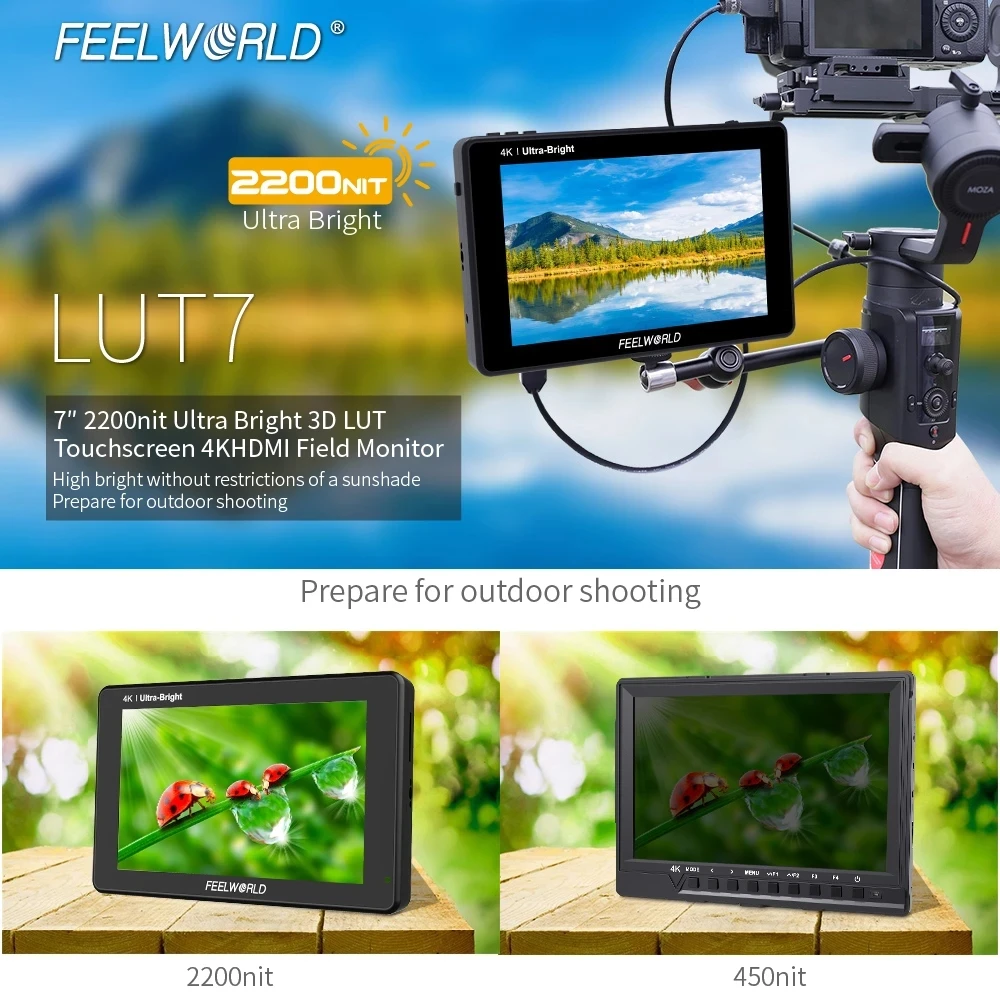

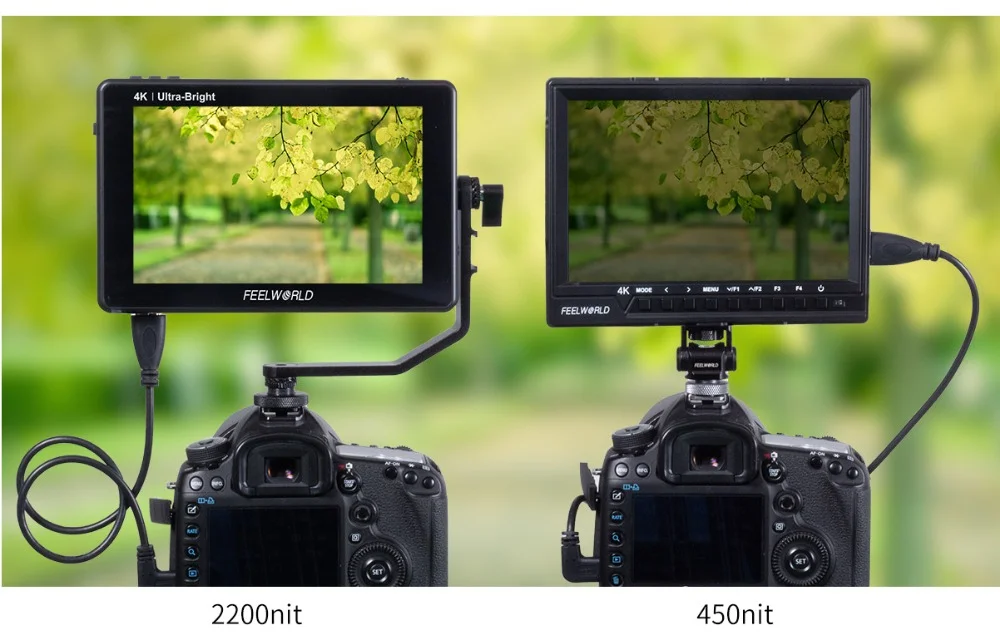

2200nit Daylight Viewable
The LUT7 7" 1920 x 1200 monitor not only has the resolution and pixel density to make every shot look amazing, the high bright 2200nit screen at almost 4 times the brightness of conventional field monitors lets you shoot outdoors without reflections washing out your image. This makes it easy to see outdoors without a hood, making it easy for outdoor shooting in bright daylight !

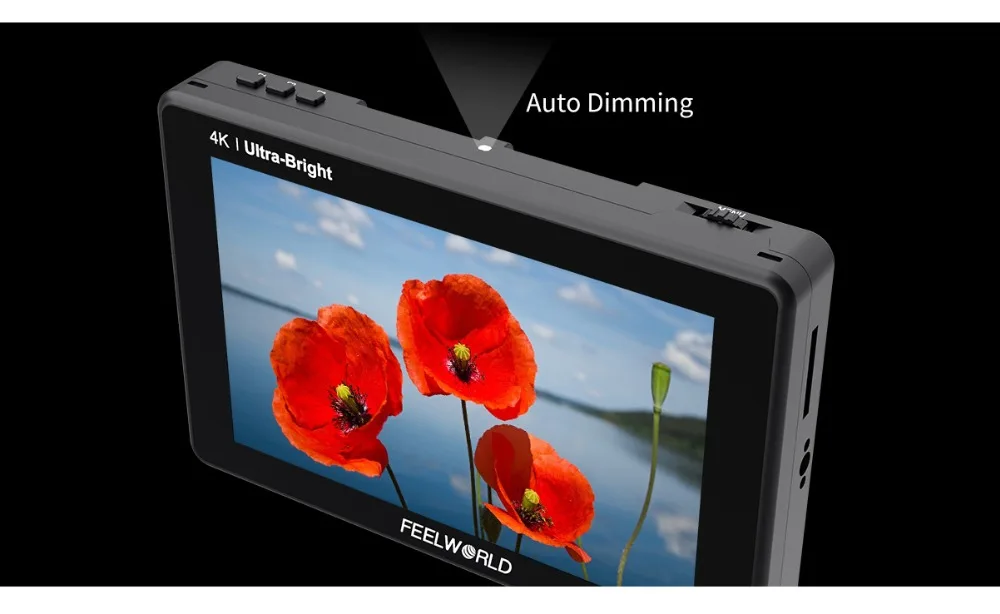

Light Sensor for Auto Dimming
And LUT7 has an ambient light sensor that detects ambient light levels and automatically adjusts the screen brightness. It ensures that the screen is readable in different environments and always protects your eye. Increasing the screen brightness compensates for bright sunlight when used outdoors, while a dimmer screen is more comfortable on the eyes when viewing in the dark.

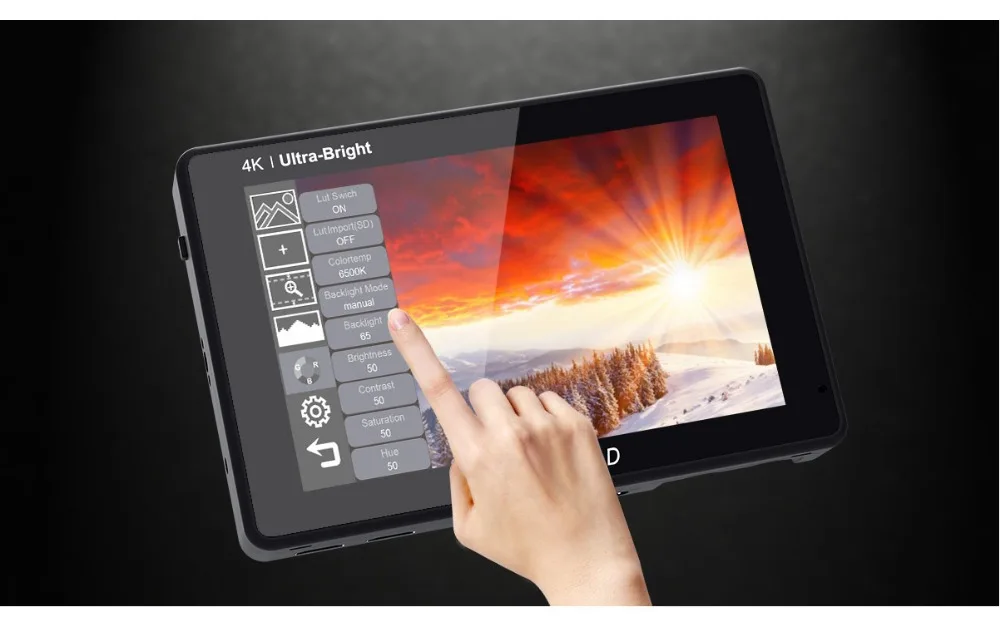

Large Monitor with Easy Touch Controls
The innovative touchscreen LCD user interface provides incredible control. You can uses simple tap and swipe gestures for the important monitoring functions. Scopes can be enabled via the touch screen as well as focus and exposure assist. There's also an extensive range of settings all controlled from the large LCD. Plus you can load 3D LUT!
Load Custom 3D LUTs to Recreate Film Looks!
Some cameras can output logarithmic colorspace to preserve the dynamic range, which is great for later post production, however when these files are viewed on a monitor they can look flat and washed out. 3D LUTs solve this problem because they allow you to apply a "look" to the monitor so you get an idea of how the finished images will look like when editing. You could use built-in LOG to Rec.709 video or upload .cube files. LUT7 allows you to load internally up to custom LUTs, looks or profiles at any time via the SD Card Slot and instantly select between them, maintaining creative intent, always.
More Resolution, Less Reflection
The FEELWORLD LUT7 enables clear and precise field monitoring and image analysis during daytime shoots. It displays your stills and monitoring content at superior color fidelity and 1920 x 1200 maximum resolution on a 7-inch display. The panel is made of optically bonded glass with an anti-reflective coating, which allows comfortable daytime field monitoring. But what really sets it apart is its light-emitting diode (LED) backlighting, which outputs a brightness of 2200 nits and displays a 1200:1 contrast ratio and sRGB / Rec.709 Color Gamut, resulting in exceptional screen clarity even in intense lighting conditions. With the monitor displaying your content at 323 pixels per inch (PPI), you can shoot in broad daylight with confidence and refine your content on the spot. The wide 160º viewing angle makes it easy for multiple members of the crew to watch it at the same time.
Combines Reliability with Useability
The LUT7 equips filmmakers with the benefits of a large on-camera display without making the camera set up feel cumbersome.FEELWORLD LUT7 is packed with high end monitoring features in a small, lightweight package that can be connected to virtually any camera. The front features a large high resolution, daylight viewable LCD touchscreen, there are video connections on the bottom and SD card slot on the side, and space for two NP-F batteries on the back. The outer frame features standard ¼" mount points on the bottom, left and right for attaching it to cameras and rigs. This design detail makes the LUT7 easy to attach to a camera and easy to share with a team member or client on set.
Simple OS, Sophisticated Shots
Our flexible OS is packed with an extensive suite of scopes, all 1-touch away and simple to use. The Video OS includes tools for focus, framing & exposure (waveform, RGB parade, vectorscope, RGB histogram, histogram, audio meter, focus peaking, zoom, zebra, false color, frame guides, safe area, etc.) along with a flexible 3D LUT implementation (use built-in LOG to Rec.709 video or upload .cube files), HDR monitoring and options for anamorphic de-squeeze monitoring.

True Color · Professional Color Calibration

Use Rec.709 color standard FEELWORLD uses the professional Rec.709 HD color standard, and uses the color calibration technology, with the professional instrument calibration at the factory, it can achieve monitor calibration efficiently and get accurate color reproduction easily, do not distort the color, show the real image when you shooting video.

Accurate Color Reproduction

FEELWORLD monitor support ITU standards and HD video Rec.709 standard consistent color space, advanced image processing technology, so that the image clearly presented, the color is extremely natural, to ensure accurate color reproduction, to reproduce the physical nature of shooting, enabling users to accurately evaluate the quality of various input video signals.

Waveform

This essential feature assists with the calibration of professional video cameras. It shows the overall brightness of the image assisting the video professional in correcting exposure. The waveform feature also checks the evenness of the lighting when lighting a chromakey or background.

Vectorscope

Vector scope shows how saturated the image is and where the pixels in the image land on the color spectrum. It can also be displayed in various sizes & positions, that allows users to monitor color gamut range in real time.

RGB Histogram

RGB histogram is a graphical display of the distribution of tones, shows the Red, Green and Blue channels histograms. Suitable for HD-SDI and HDMI signal monitoring.
Anamorphic Mode
Built-in selection of no squeeze, 1.25x, 1.33x, 1.5x, 2.0x or 2.0x mag allows you to use anamorphic lenses or adapters and see the image unsqueezed, even if your camera does not de-squeeze in camera.
Ratio Marker
There are a variety of ratio marker (16:9, 16:10, 4:3, 1.85:1, 2.35:1); the transparency of the ratio marker has 4 display effects optional (0%, 25%, 50%, 75%). You can switch the marker colors between yellow, red, green, blue, white and black according to different tone of the subject.
Product Paramenters
You can also get a quick glance at your menu settings and features with an easy tap on the screen. It also supports physical buttons control. Tap/Rotate the wheel button for quick selection and function settings. Tap the power switch to turn off the touch function, designed to prevent misuse.
Touch Screen Operating Instruction
1. When the monitor and touch are both on, continuously click the screen twice to enter the main menu. 2. Swipe up from the bottom of the screen to open the shortcut menu and click on the corresponding menu to open or set the corresponding function. Double-click the shortcut menu function and select the function setting with the "<" or ">" key. 3. On the left side of the screen (1/2 split screen), you can directly adjust the brightness of the screen backlight; on the right side of the screen (1/2 split screen), you can directly adjust the volume. 4. Click any space beside menu to exit the menu.

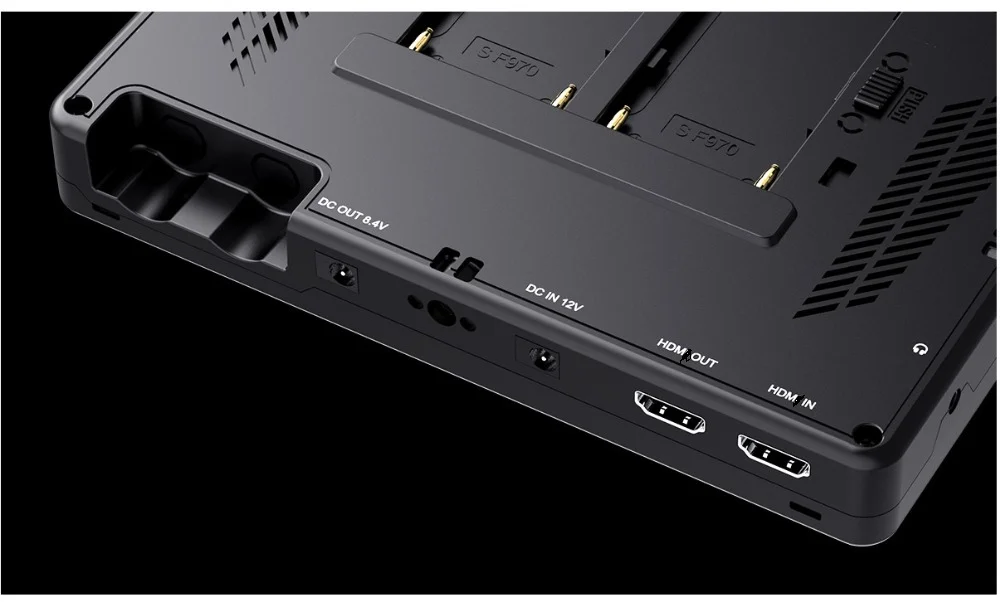

Connect to Professional Cameras, Camcorders and DSLR's
With both 3G-SDI and 4K HDMI inputs you can connect it to any consumer camera, broadcast camera or even DSLR cameras. You also get loop thru outputs, so you can display live video or expand display on external screens or projectors with embedded audio. You can also monitor audio using the 3.5mm stereo headphone jack. For power, there’s a 12V DC input and one NP-F battery slot.The back of the monitor have the fan that automatic heat dissipation according to backlight brightness. Under "auto", if the backlight brightness is greater than 80, the fan will turn on automatically.

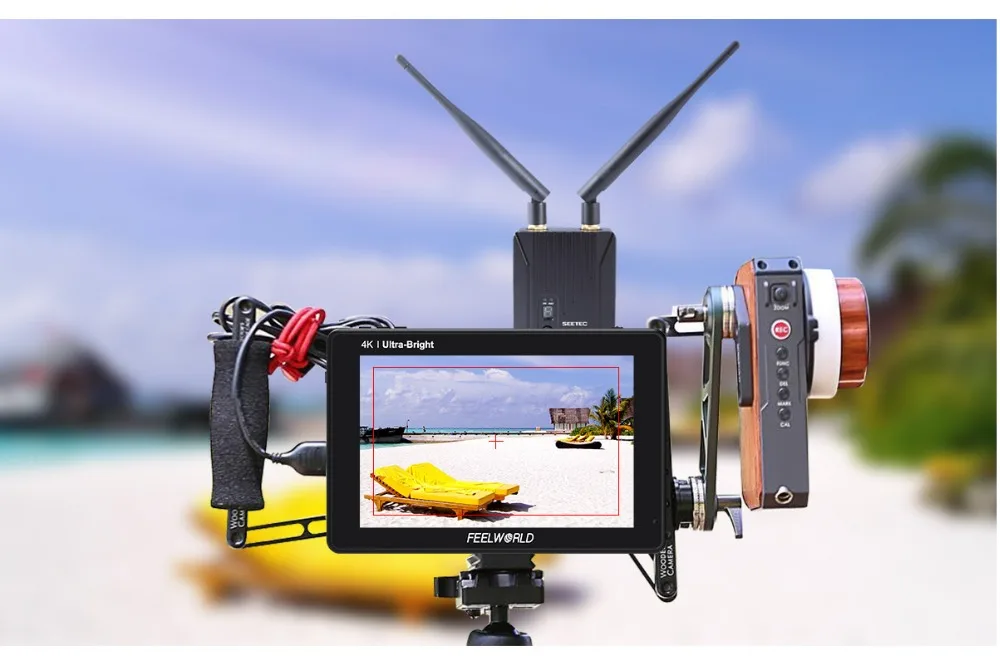

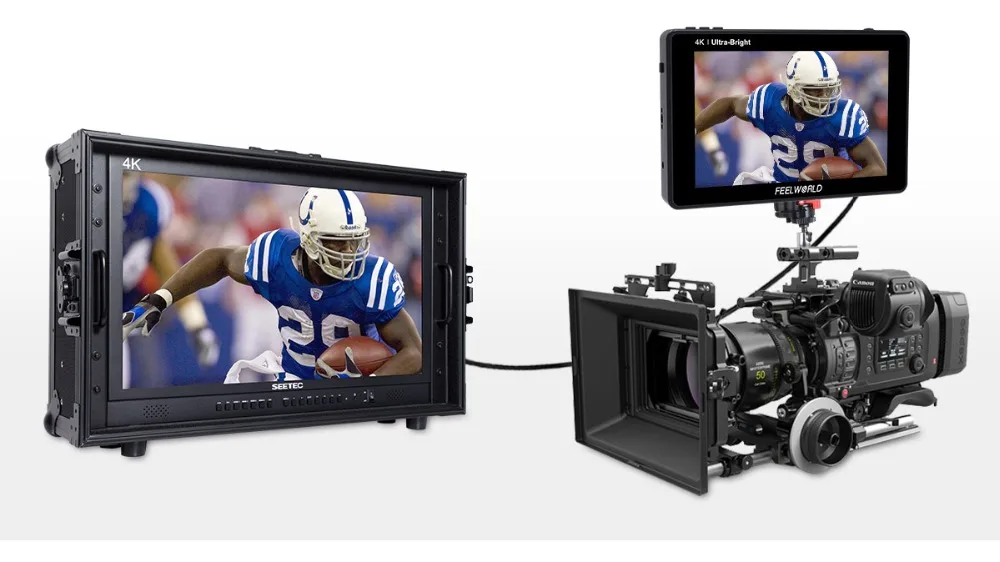

4K HDM Loop-out
The LUT7 has 4K HDM in and loop-out, allowing it to not only display live signals, but also send them out to other monitors simultaneously. It's the ability to display live picture on multiple displays at once while still maintaining the original video quality.Connect to Wireless Transmitter Transmission to film crew director monitoring at the same time. Without the cable more flexible to transition between scenes effortlessly for outdoor shooting.
Features
* 【2200nit Ultra Bright and Automatic Brightness Adjustment】The 7" 1920 x 1200 monitor has the high bright 2200nit. This make it easy for outdoor shooting in bright daylight without a hood! The monitor has an ambient light sensor, Increasing the screen brightness compensates for bright sunlight when used outdoors, while a dimmer screen is more comfortable on the eyes when viewing in the dark. The Backlight (1 ~ 100) can be adjusted manually.

* 【Easy Touch Controls and 3D LUT】 The innovative touchscreen LCD user interface provides incredible control.Get rid of complicated Buttons! All of the functions are at your fingertips. Plus you can load custom 3D LUT.

* 【Trust What You See】 The professional tools are extremely helpful to your filming, like waveform, RGB parade, vectorscope, RGB histogram, histogram, audio meter, focus peaking, zoom, zebra, false color, frame guides, safe area, etc. Scopes for accurate exposure and focus. It can support load 3D LUT (only support view on monitor) .

* 【Ideal Camera Partner】Includes 4K HDMI In/ Out, the HDMI connection is compatible up to 4Kp30. You can monitor audio using the 3.5mm stereo headphone jack. 【Convenient Mounting 】The outer frame features standard ¼" mount points on the bottom, left and right can be use tilt arm for attaching it to cameras and rigs. 360°rotation of Tilt Arm can be get the best viewing angle and easy mount for accessories like microphones, video lights.
Product Paramenters
Model
LUT7
Screen Size
7" IPS
Resolution
1920x1200 pixels
Pixel Pitch
0.07875 (H) x 0.07875 (W) (mm)
Aspect Ratio
16:10
Brightness
2200cd/m² (Light Sensor)
Contrast Ratio
1200:1
Backlight
LED
Viewing Angle
80°/80°(L/R) 80°/80°(U/D)
Input
1 X HDM
Output
HDM

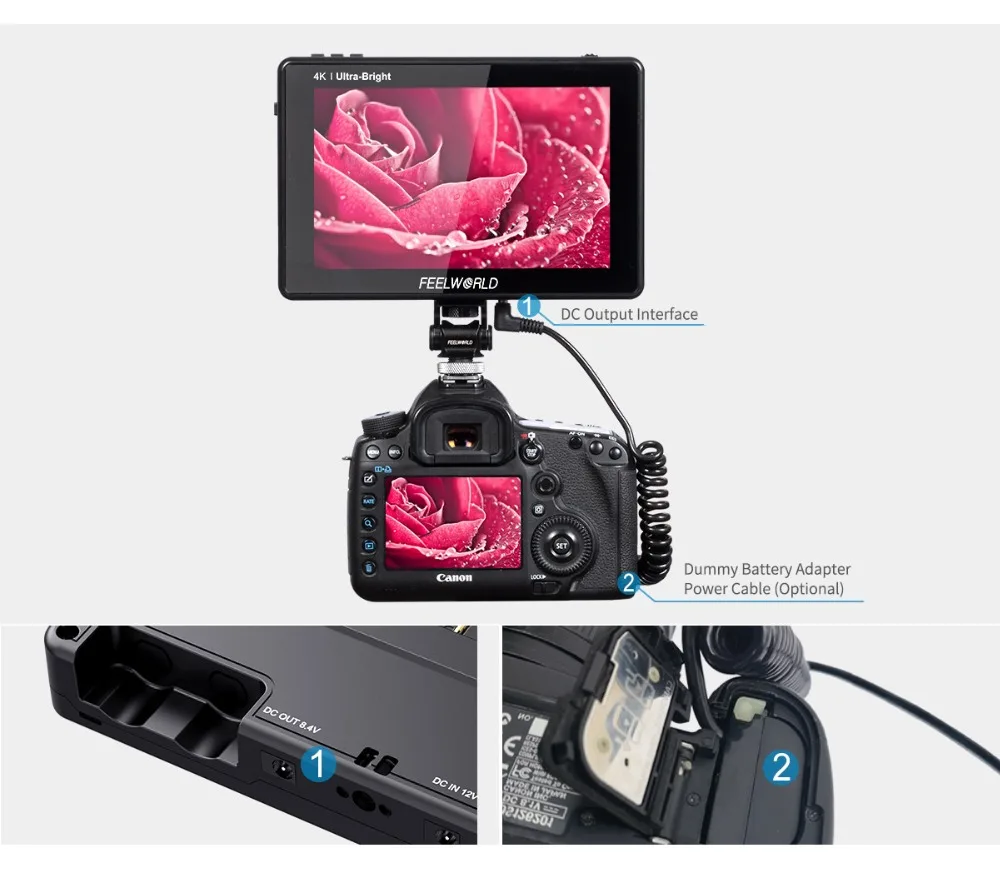

1 X DC(Barrel (5.5mm outer, 2.1mm inner) barrel output for powering cameras via camera specific adaptor.)
Audio
3.5mm Stereo Headphone


HDM Input/ Output Support Format
480i/576i/480p/576p
1080i (60/59.94/50)
720p (60/59.94/50/30/29.97/25/24/23.98)
1080p (60/59.94/50/30/29.97/25/24/23.98)
4K UHD 3840×2160p (30/29.97/25/24/23.98Hz), 4096×2160p (24Hz)
Input Voltage
DC7~24V
Power Consumption
≤20W
Working Temperature
-20°C~50°C
Storage Temperature
-30°C~60°C
Install Way
1/4"-20 Thread Socket (Left, Right, Bottom)
Battery Plate
Dual F970 Battery Plate

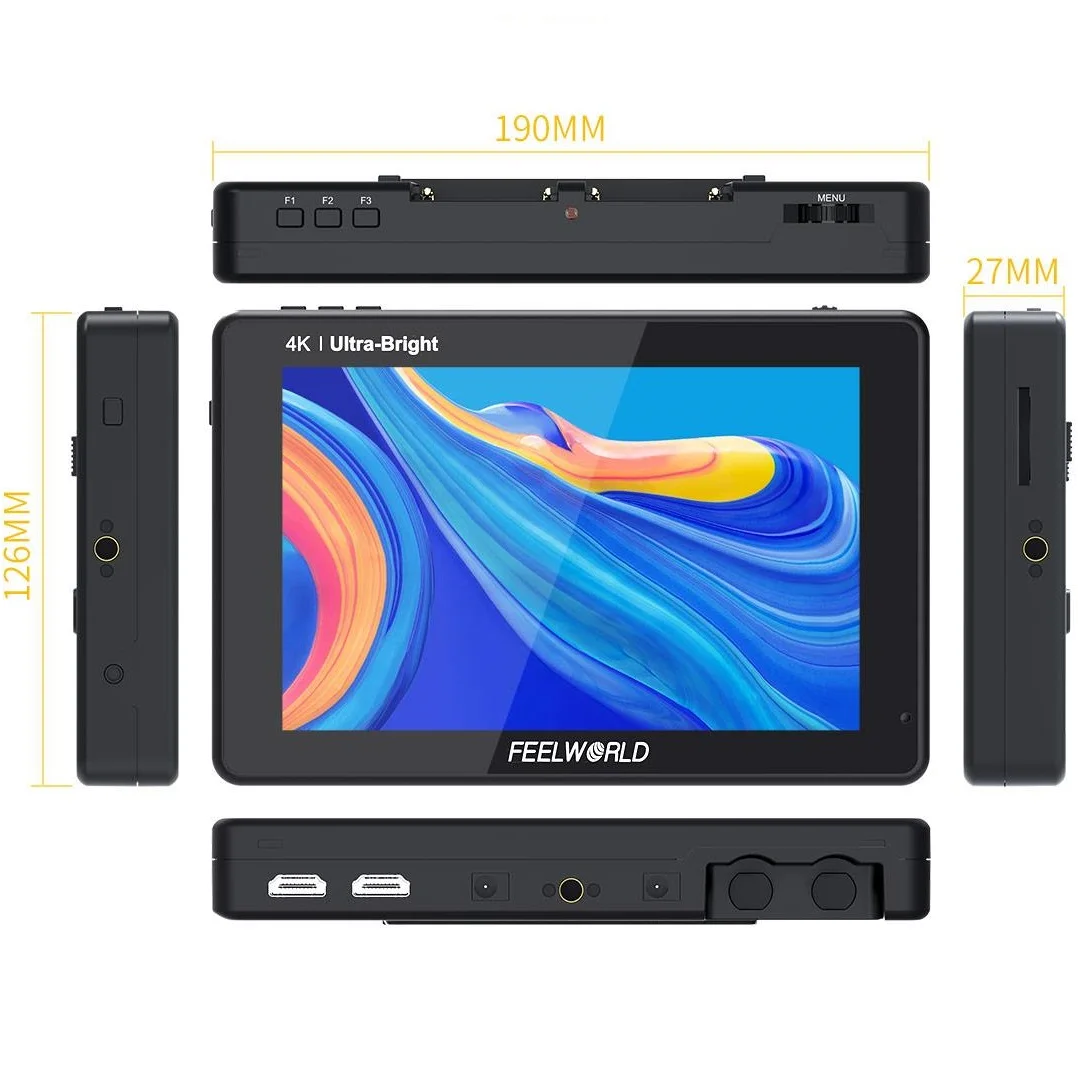

Unit Size
190Lx126Hx27D (mm)
Unit Weight
460g
